Heat storage unit

A technology that allows storing excess electrical energy up to 50 times cheaper than in batteries


Main advantages of the solution

This heat storage unit allows excess electrical energy from the grid to be stored as heat at any time, and it is up to 50 times cheaper than storing it in battery storage systems.
It is an entirely eco-friendly device, constructed from standard and readily available materials and technical components (1 crushed stone or ceramic aggregate, 4 standard blowers, 3 heat exchangers, 2 ceramic heating rods, etc.)

The heat accumulated in this way can be used for heating, cooling, and even for generating electrical energy, with the subsequent use of waste heat.
An ideal place for implementation is existing district heating plants, where the necessary existing infrastructure can be utilized, or it can be placed directly in newly built residential areas.
Of course, the accumulated heat can also be used in industry.


Advantages over battery storage

Long lifespan with an unlimited number of cycles. The aggregate can be easily restored, as can the technical components.
The high safety of the system is ensured by the materials used—there is no risk of fire, explosion, or leakage of hazardous substances.
High available capacity – to store 1 MWh, 3-5 m³ of aggregate is needed, which is approximately 4 tons of material.
Naturally, the larger the storage capacity, the greater the efficiency of the system.


Řešení HSU

Stacks Image 171

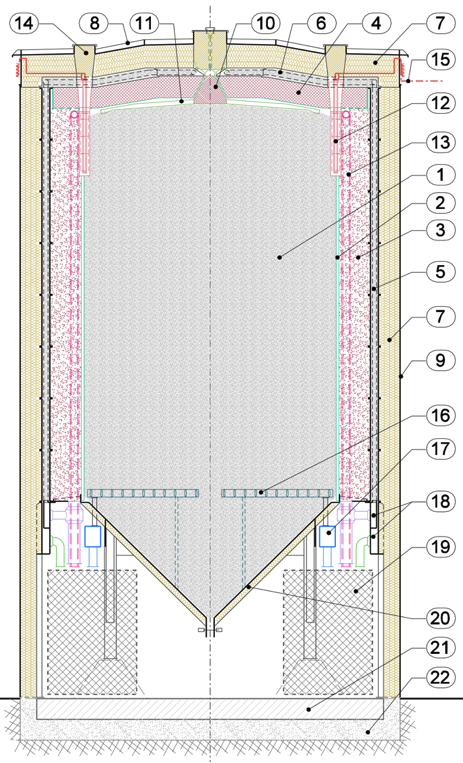

  1. Space filled with heat storage material
  2. Shell separating insulation and storage material, stainless steel sheet
  3. High-temperature wall insulation, perlite
  4. High-temperature lid insulation, ceramic fibers
  5. Steel silo structure, double shell, filled with loose storage material
  6. Steel lid structure, double shell, filled with loose storage material
  7. External thermal insulation, mineral fibers
  8. Roof cladding, welded sheet metal panels, galvanized
  9. Wall cladding, sheet metal, foil
  10. Inlet opening for filling the storage material
  11. Rotating blade for spreading storage material, external roller bearing and drive, firmly connected to a cone that seals the opening when closed
  12. Heating rod module
  13. Vertical duct, connection to the upper part of the storage space
  14. Thermally insulated installation pit block
  15. Electrical connection of the storage unit
  16. Grid made of hollow profiles, with slots in the shell, for distribution and collection of cooled gas
  17. Perimeter duct for cooled gas distribution
  18. Heat recovery ducts inside the storage unit shell
  19. Location of blower and heat exchanger module
  20. Steel silo structure, discharge cone with shut-off valve
  21. Foundation slab with column footings
  22. Sub-base of the foundation slab made of crushed foam glass
